Ikelite Underwater Housing, OM System Tough TG-7 Camera and Ecko Strobes Wide Angle Kit

3.248,75 EUR

(incl. VAT)

Explore the deep with confidence using the Ikelite Housing Kit for OM System Tough TG-7. Includes wide-angle lens and powerful Ecko strobes for vivid underwater shots.

Instruction Manual



Model/Product no.: 62343E KIT
Stock status: Assembled on order and shipped.
psc.

All custom fees paid on European orders

(islands and special locations excepted)

Fast delivery 1-3 week days

If you order before 14.00

Customer service and support

VAT reverse charge where applicable

on business orders

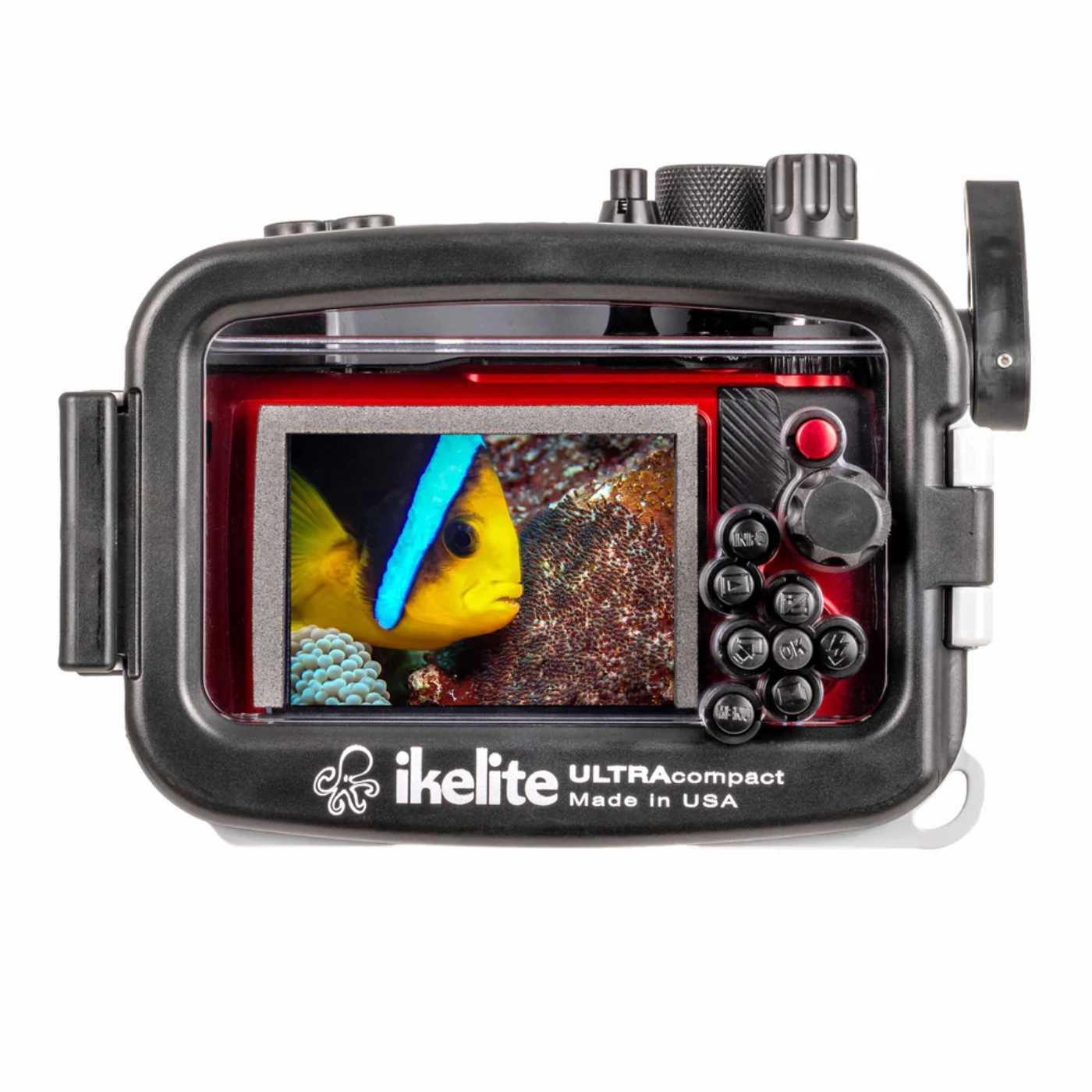

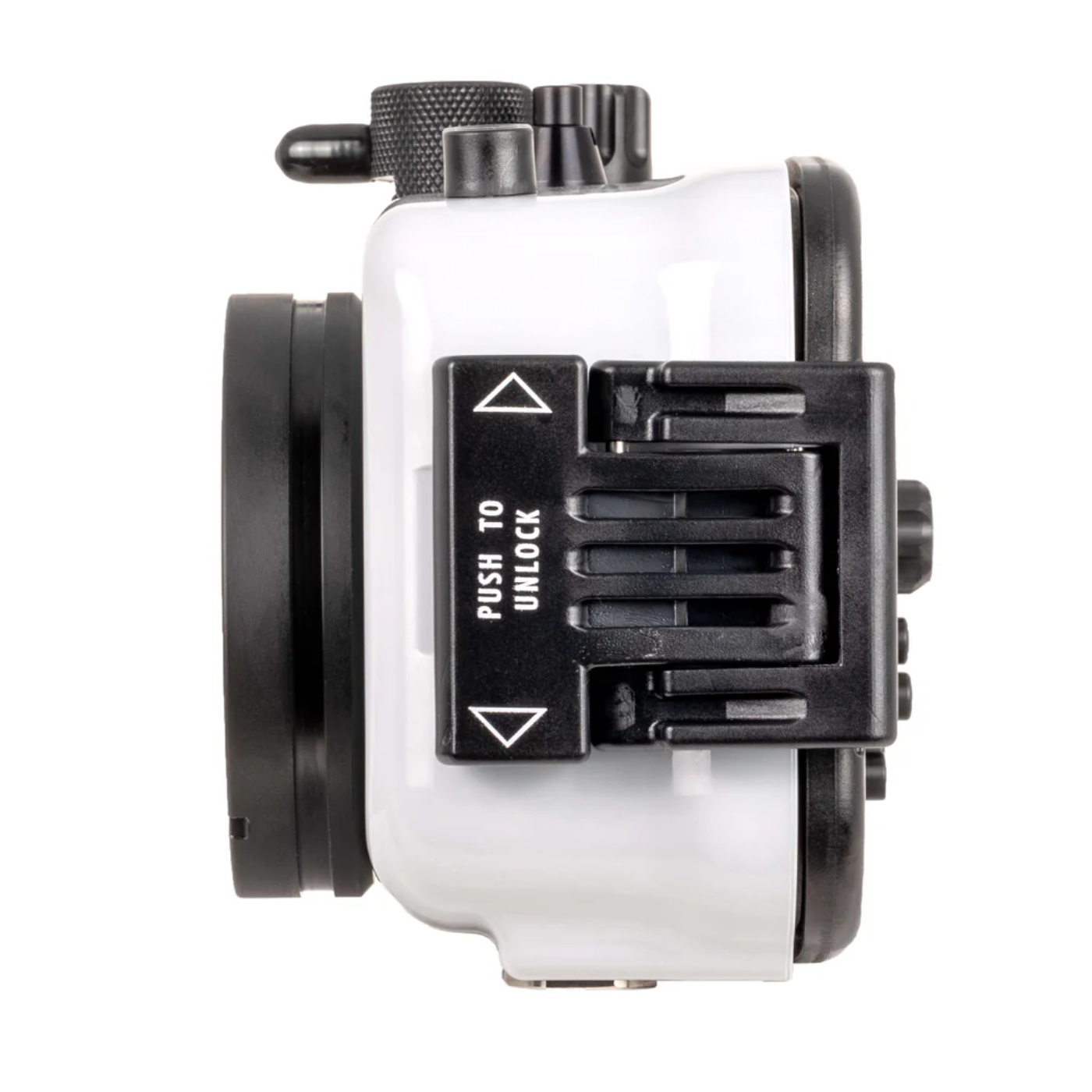

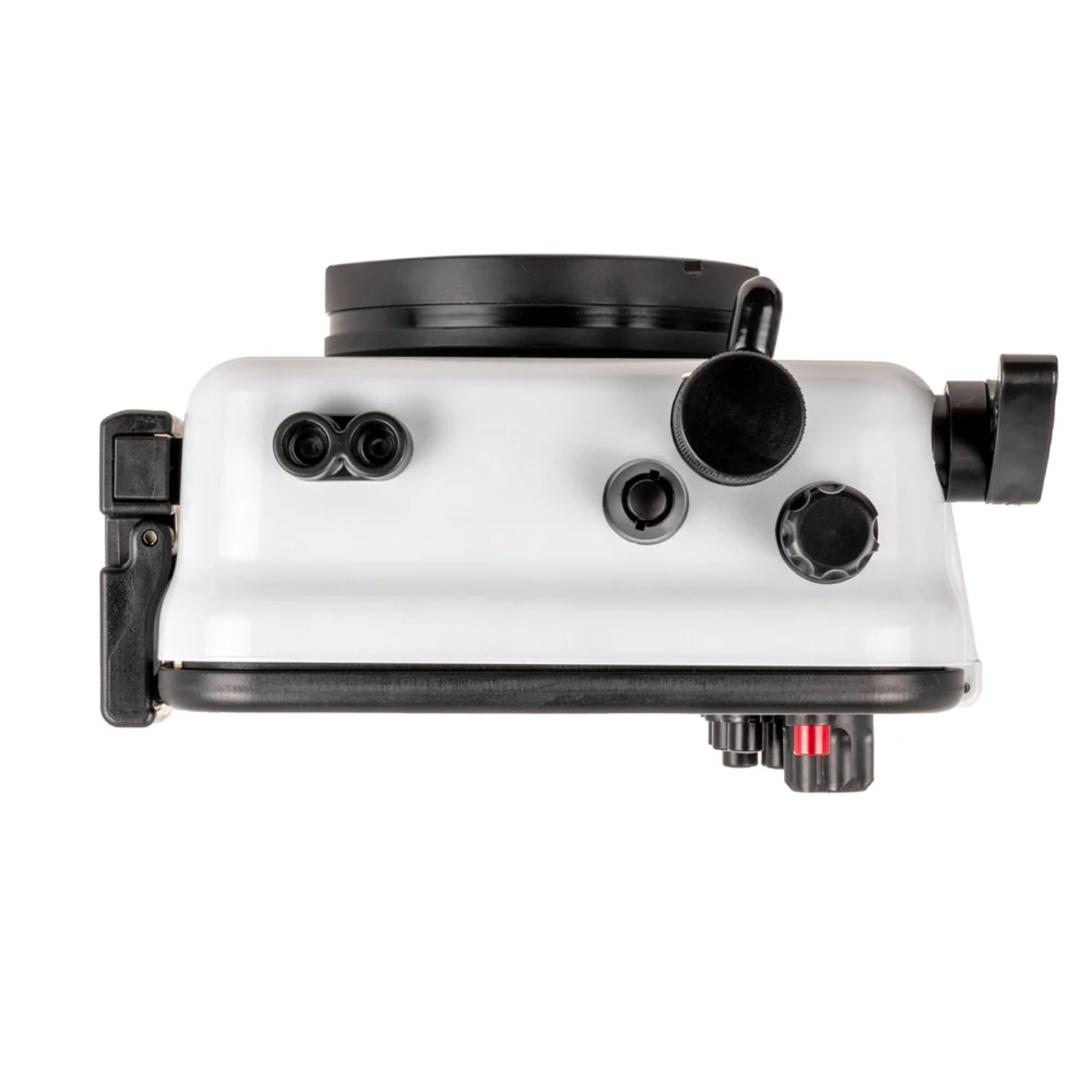

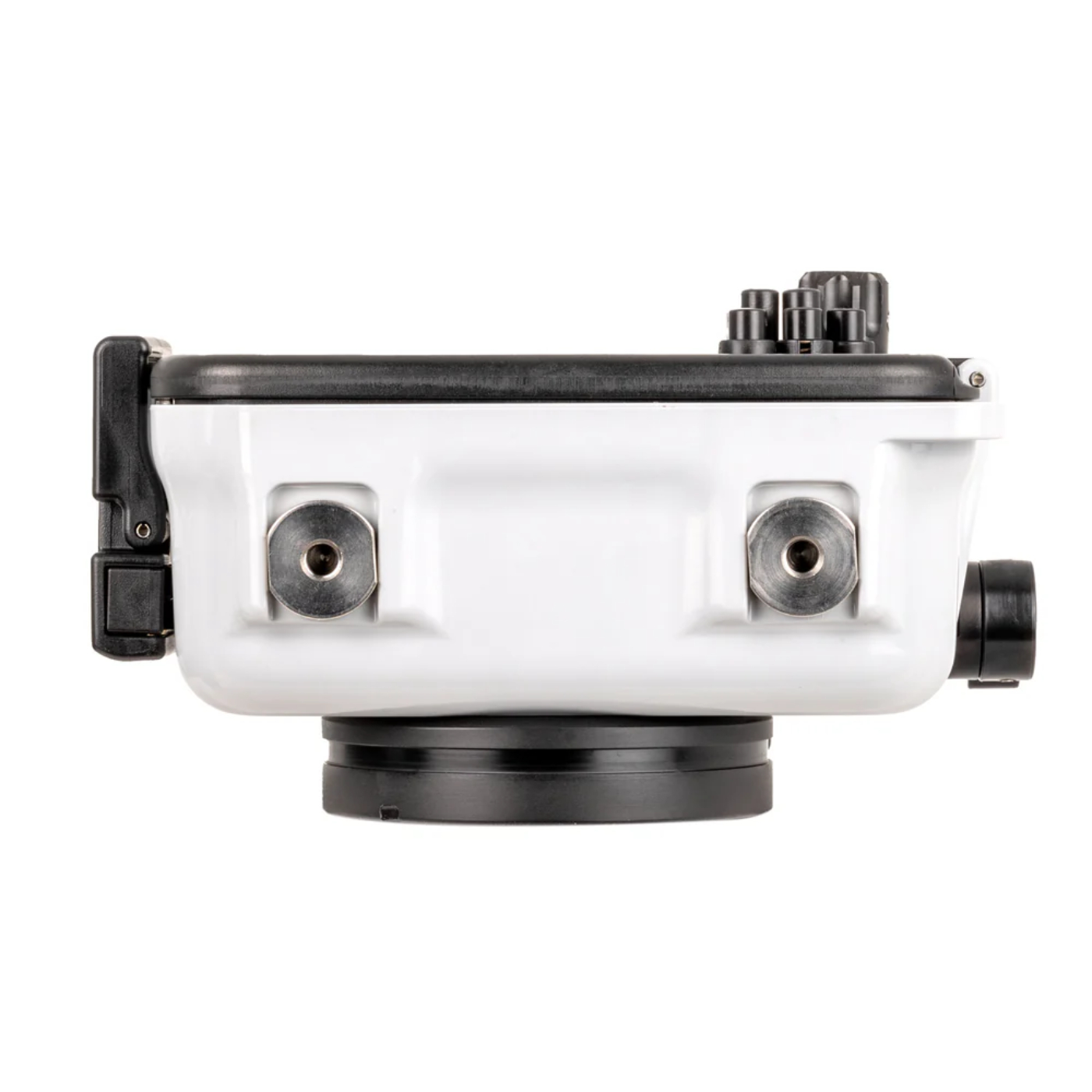

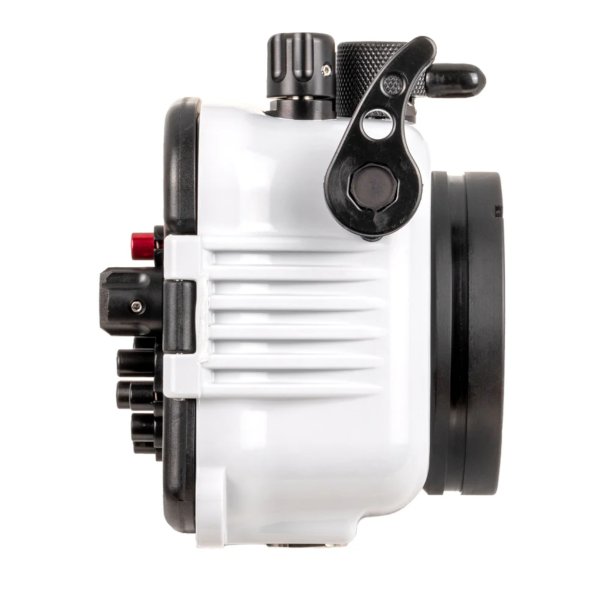

Dive deeper and capture more with this complete ultra‑compact underwater imaging system. It features Ikelite's precision-molded ABS‑PC housing, perfectly tailored for the rugged OM System Tough TG‑7, and includes full controls, TTL-ready strobes, and an expansive dome port setup—ideal for both wide-angle and macro shooting. Rated for depths up to 60 m, it’s robust yet travel-friendly

Key Features:

  • Rugged Design: Housing crafted from ABS‑PC blend, pressure-tested to 60 meters, lightweight, and travel-friendly. Light color minimizes heat buildup in sunny conditions.

  • Full Functionality: All camera dials, buttons, and zoom works smoothly—no compromises in underwater control.

  • Macro & Wide‑Angle Flexibility: The 6″ dome port + FCON‑T02 fisheye lens enable seamless transitions from macro to wide-angle. Ideal for split shots (interesting over‑under imagery) and full-frame viewing underwater

  • TTL‑Capable Lighting: Ecko fiber strobes communicate with TG‑7’s RC flash to deliver automatic TTL flash exposure, whether shooting close-up or wide-angle.

  • Camera Excellence: TG‑7 packs a 12 MP BSI‑CMOS sensor, 25–100 mm zoom (f/2–f/4.9), microscope macro mode, focus stacking, RAW capture, and 4K UHD video—performance rivaling pricier mirrorless systems. Independently rated to 50 ft waterproof, shockproof—great for surf and pool without housing.

  • User‑Friendly Features: Transparent rear allows quick leak-checks; built-in Wi‑Fi enables image transfers above water without opening the housing

Specifications:

  • Controls: Full access to all camera functions
  • Strobe Connector: Dual fiber optic ports
  • Lens Port: 6" diameter acrylic dome port
  • Depth Rating: 60 meters
  • Weight: 2.31 kg
  • Rear O-Ring: Ikelite O-Ring #0132.45

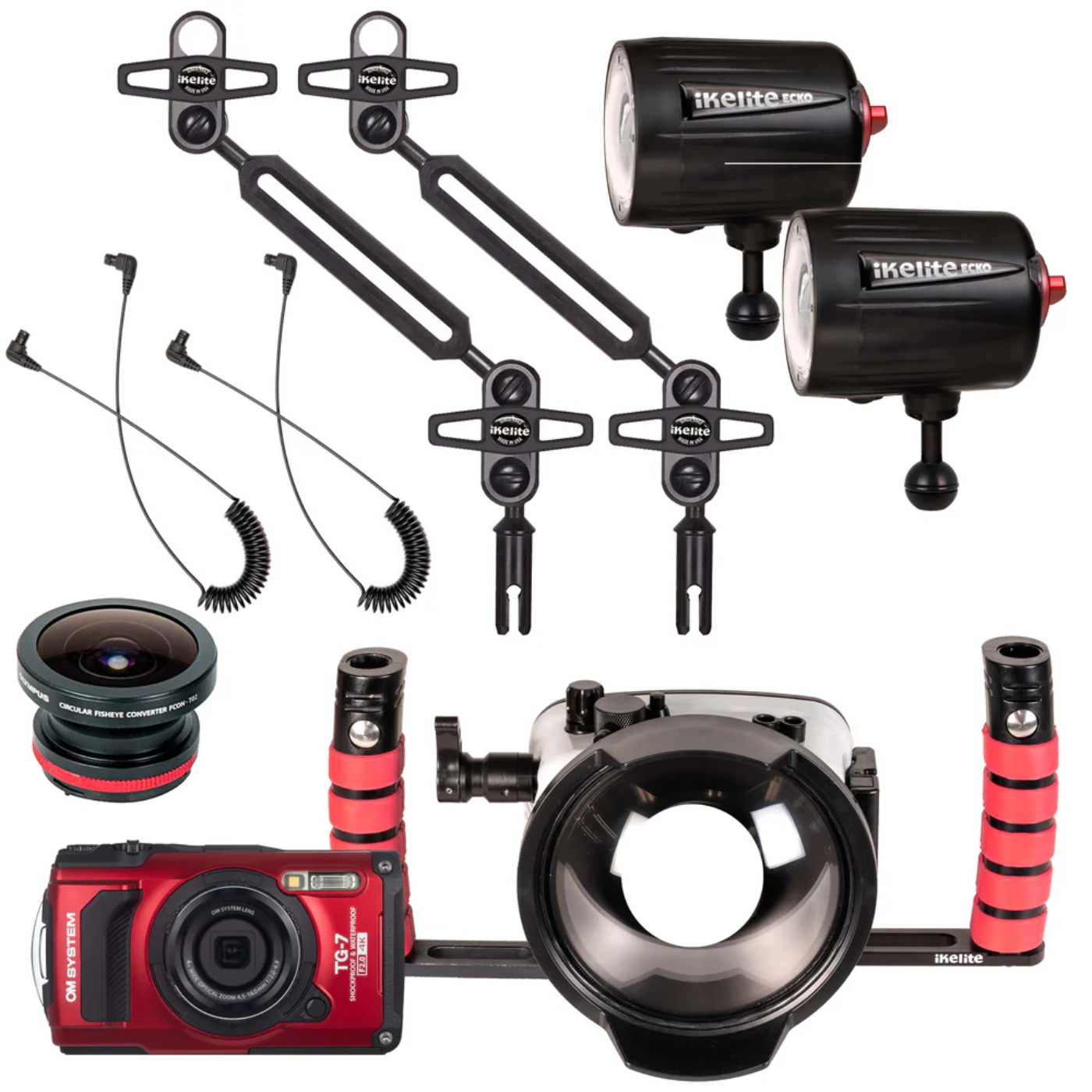

In the Box

  • Ikelite Underwater Housing # 6233.14 includes:
    • Housing
    • Dome Port (installed)
    • Port Cover
    • Lubricant
    • Lanyard
  • OM System Tough TG-7 Digital Camera (Red) includes:
    • Olympus LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh)
    • USB-C Cable
    • Hand Strap
  • Olympus FCON-T02 Fisheye Lens w/ Adapter
  • Action Tray II with Left Handle # 2605.04
  • Action Tray II Extension with Right Handle # 2605.05
  • (2) Ecko Fiber Strobe # 40101 includes:
    • Strobe
    • Dome Diffuser with Lanyard
    • Ball Mount
  • (2) Fiber Optic Cord # 4501
  • (2) Compact Ball Arm # 40781
