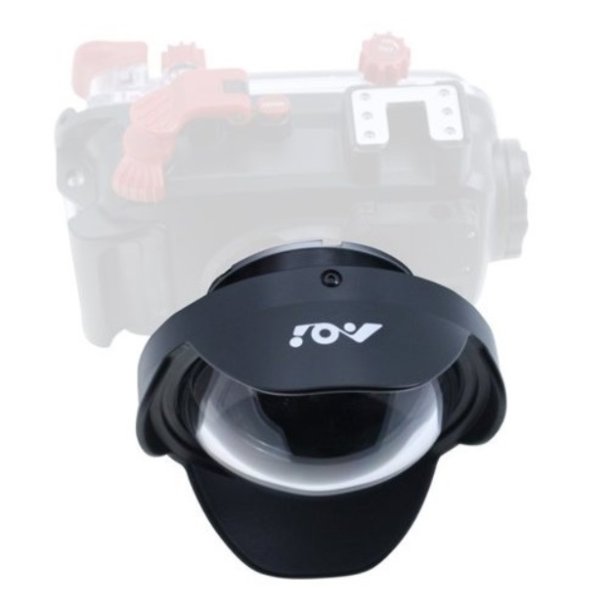

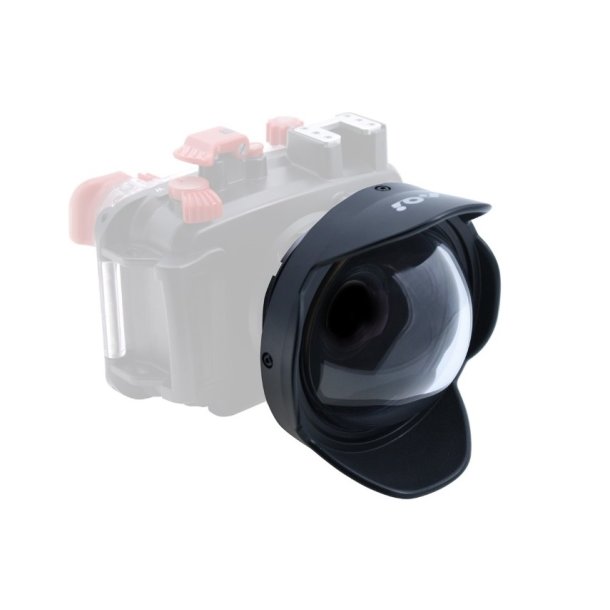

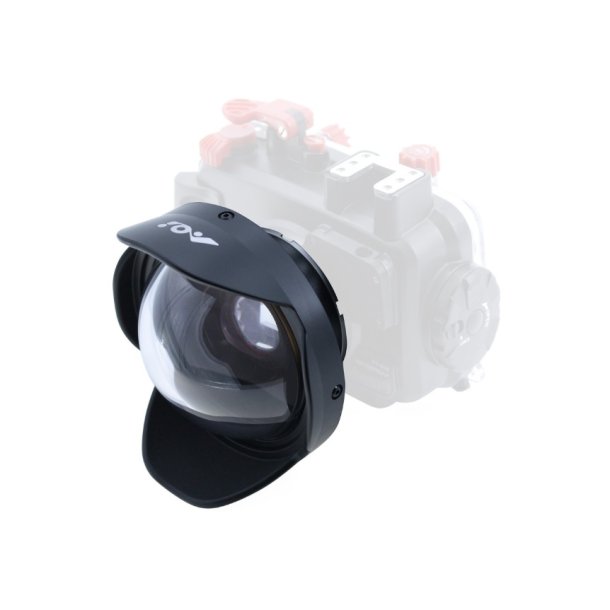

The UWL-400A is a quality Wide Angle Lens that will expand your FOV to 120-degree.
The QRS system: (Quick Release System)
There are different options to mount this lens.
1) The M52 thread can be screwed directly into housings like the Olympus TG-7 (with M52 thread)
2) Or you can mount the AOI bayonet system onto the lens and onto your port.
Once the QRS adaptor is mount on the port, it wil fit into both the M52 and the M67 QRS port adaptors from AOI.
(The two port adaptors are listed below)
By using the QRS system, you can easy take on/off the lens both under and over water.
By removing it under water you can enjoy the beauty of the powerful macro that the TG-5/TG-6/TG-7 camera deliver.
You can see the items below or on an overview of the QRS system here.
AOI's quick release system
SPECS: AOI Lens - model - UWL-400A
- 120 Degrees Wide Angle
- Very sharp Corners
- No Vignetting
- Anti Reflection Coating
- Full Zoom Through
- Includes Dome Cover and Rear Lens Cap
- Soft Travel Case
Description: 0.50X Underwater Wide Angle Conversion Wet Lens
Lens Construction: 5 Elements in 5 Groups
Lens Coating: All Glass Lens Elements with Multi-layers AR Coating,
Front: PC Dome Lens with Hard Coating
Field of View (diagonal): Underwater 120°(with 25mm Lens)
Magnification: 0.50X (on land / underwater)
Minimum Object Distant: 0 mm to the Front Dome Lens (on land/underwater)
Mount System: M52 Thread (M67 adaptor available)
Depth Rating: 100 Meters
Bezel / Body Material: ABS / Hard Anodized Aluminum Alloy
Weight: (on land / underwater) 603g (on land) 220g (underwater)
Dimensions: 121.8mm (D) X76mm (H)
Standard Accessories Included:
Neoprene Dome Cover (DNC-02)
Rear Cap (PRC-05)
Lens Secure Line (LSL-03)
PICTURES TAKEN WITH THE UWL-400 BY:
Iztok Valentincic
